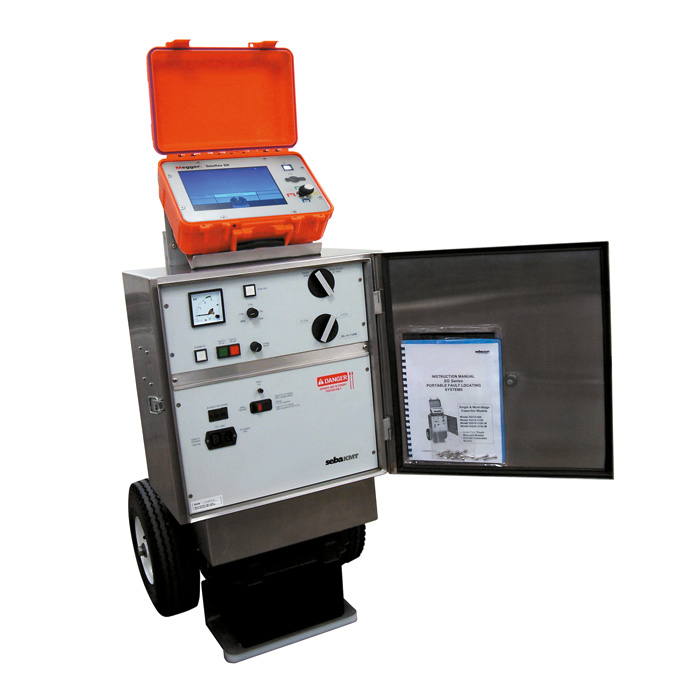

Стандартное решение для поиска кабельных повреждений SURGEFLEX 15/25

System

Surge rate

3 … 9 s

Battery operation

approx. 1.5 h (1150 J)

Mains supply

230 V; 50 / 60 Hz (110 V optional)

Dimensions (W x H x D)

600 x 1250 x 600 mm

Connecting cable

6 m (standard)

Models (incl. Teleflex SX, battery and cable)

Surgeflex 15-1150

Test and surge voltage

Weight

0 ... 7.5 kV; 1150 J

0 ... 15 kV; 1150 J

approx. 110 kg

Surgeflex 25-1150

Test and surge voltage

Weight

0 ... 12.5 kV; 1150 J

0 ... 25 kV; 1150 J

 approx. 110 kg

Teleflex SX

Operation

Capacitive touchscreen and jogdial

Range

20 m ... 160 km @ v/2 = 80 m/µs

Pulse width / amplitude

20 ns … 10 µs/ 30 …50V

Resolution

0.1 m @ v/2 80 m/µs, 1 cm @ V/2 < 40 m/µs

Gain

- 37 ... +37 db

De-attenuation

0 ... +22 dB for ProRange (adjustable 0 ... 100 %)

Sample rate

Up to 400 MHz

Propagation velocity V/2

10 ... 149.9 m/ps, ft/ps or nvp

Dynamic range

> 80 dB

Compensation

8 Q ... 500 Q, adjustable

Voltage proof input

> 400 V

ARMslide

15 measurements in one ARM shot

Dead zone

None

Modes

Symmetrical / unsymmetrical reflection measurement, difference measurement/ comparison, all ARM Arc reflection me­thods, all ICE impulse current decoupling, methods, DECAY travelling wave method, IFL Intermittent fault location,

Arc reflection burning

Display

10.4" TFT XGA 1024x768, 600 cd/m2, CCFL-Backlight

Data storage

4 GB mSATA for program and data

Connectors

Ethernet, USB, BNC, CAN (LON opt.)

Protection class

IP 65 closed, IP 54 open lid

Supply

110 ... 240 V, 50/60 Hz, 30 VA, 12 V ext

Dimensions (w x h x d)

362 x 195 x 306 mm (opt. 19", 6 HU)

Weight

10 kg

Operation temperature

-10 °C ... +50 °C

Storage temperature

-20 °C ... +60 °C
